KN-5000C
Excimer 308 nm
Multi-specification
shading sheets realized a precise
control of the irradiation range that
suitable for different sizes of
lesion treatment
Monochromatic
UVB therapy for Psoriasis and
Vitiligo
Key
Features:
- The 308 Excimer is a handheld system for intense monochromatic UVB therapy treats autoimmune diseases of the skin such as psoriasis and vitiligo
- A well designed lighter weight hand piece separated from operational unit offers stress free treatments unlike others
- Built-in minimum erythema dose (MED) test function
- Built-in patient information Management: A very convenient tool for operator to manage patient information and treatment records.
- Lower investment, no consumables cost and ease to use
| Specifications | Parameter |
| Lamp type | XeCl lamp |
| Light wavelength | 308nm |
| Irradiation intensity | 45mW/cm2 |
| Dose range | 0-5000mJ/cm2 |
| Treatment area | Max. 20cm2 |
| Treatment time | 1s-120s |
| Work mode | Time mode and dose mode |
| Color touch screen size | 8” |
| Structure type | Desktop |
| Treatment type | Hand held |
| Life time | 500h |
| Dimensions with treatment handle | 341mm*297mm*280mm (L*W*H) |
| Power supply | AC 100-240V, 50/60Hz±2% |

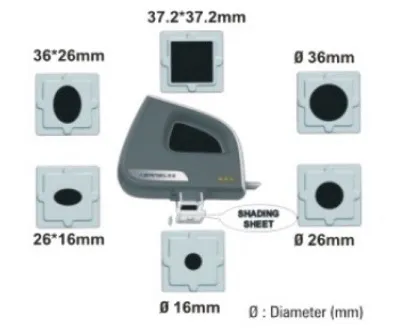

Photomask
Clinical Result
